Flotation is one of the most critical stages in mineral processing, directly influencing concentrate grade, mineral recovery, and plant profitability. However, flotation circuits are also among the most maintenance-intensive systems in a processing plant. Frequent replacement of wear parts, unexpected shutdowns, and unstable operating conditions can significantly increase operating costs.
Many plant managers believe that reducing maintenance expenses means extending replacement intervals or cutting maintenance budgets. In reality, these approaches often result in lower recovery rates, longer downtime, and even higher overall operating costs.
The most effective strategy is to reduce unnecessary maintenance while maintaining stable flotation performance. This requires a combination of proper equipment selection, optimized operating parameters, predictive maintenance, and high-quality wear-resistant components.
What is the best way to reduce flotation maintenance costs without losing recovery? The most effective approach combines optimized operating parameters, predictive maintenance, and high-quality wear-resistant components matched to specific ore characteristics. Rather than cutting maintenance budgets, successful operations reduce unnecessary maintenance while maintaining stable flotation performance through proper material selection and proactive wear monitoring.
✔ Material selection matters – Match rotor and stator materials to ore characteristics for extended service life
✔ Optimize operating conditions – Correct impeller speed, air flow, and slurry density reduce unnecessary wear
✔ Predictive maintenance saves money – Regular inspections prevent catastrophic failures and emergency repairs
✔ Standardize spare parts inventory – Stock critical components to reduce procurement delays and downtime
✔ Choose suppliers based on total cost – Not just purchase price, but engineering expertise and wear-life recommendations
| Item | Description |
|---|---|
| Function | Flotation circuits separate valuable minerals from gangue using air bubbles and chemical reagents |
| Critical Wear Parts | Rotors, stators, tank liners, impeller shafts, rubber seals |
| Common Materials | Polyurethane, rubber, ceramic composites, metal alloys |
| Main Cost Drivers | Premature wear, unstable operating conditions, poor-quality replacements, unplanned downtime |
| Key Benefits | Extended component life, reduced downtime, stable recovery, lower total operating costs |
Flotation is a mineral processing method that separates valuable minerals from gangue based on differences in surface properties. In a flotation cell, air bubbles attach to hydrophobic mineral particles, carrying them to the surface as froth, while gangue particles remain in the pulp and are discharged as tailings.

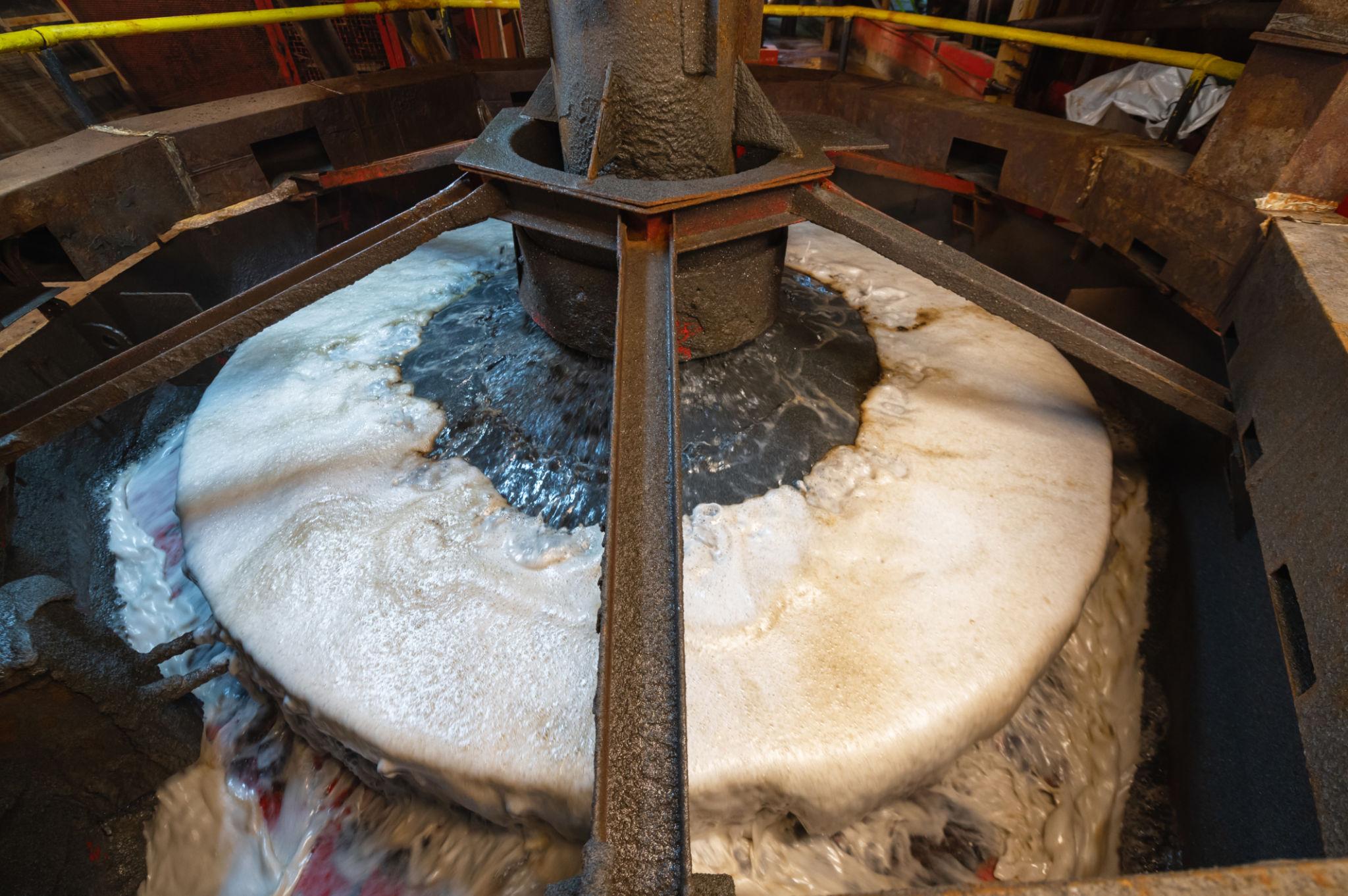

The flotation mechanism relies on the continuous operation of rotating components within the cell. The flotation rotor creates slurry circulation and bubble dispersion, while the flotation stator directs slurry flow and stabilizes the mixing zone.
The flotation process begins with conditioned slurry entering the flotation cell. The rotor, driven by a motor, rotates at controlled speeds to create a vortex that draws air down the standpipe. This air is dispersed into fine bubbles by the rotor-stator assembly.
Key operational elements include:
Slurry circulation – The rotor pumps slurry outward through the stator
Air dispersion – Air is broken into fine bubbles by rotor-stator interaction
Bubble-particle attachment – Hydrophobic minerals attach to rising bubbles
Froth collection – Mineralized froth overflows the cell lip
Investing in high-quality flotation wear parts delivers multiple operational benefits:
Extended Service Life – Proper material selection can double or triple the lifespan of rotors and stators compared to conventional components.
Reduced Downtime – Longer-lasting parts mean fewer replacements and less production interruption.
Stable Recovery Performance – Consistent rotor-stator geometry maintains optimal bubble generation and slurry circulation.
Lower Total Operating Costs – Despite higher upfront costs, premium wear parts reduce the total cost of ownership over time.
Flotation circuits are used across a wide range of mineral processing applications:
| Application | Ore Type | Typical Wear Challenges |
|---|---|---|
| Copper flotation | Copper ore | High abrasion, moderate corrosion |
| Gold flotation | Gold ore | Abrasive slurry, impact wear |
| Coal flotation | Coal | Low impact, chemical exposure |
| Lead-zinc flotation | Lead-zinc ore | Abrasive + corrosive conditions |
| Phosphate flotation | Phosphate ore | Moderate abrasion, chemical corrosion |
Choosing the right material for flotation rotors and stators depends on the specific ore characteristics and operating conditions.
| Material | Wear Resistance | Impact Resistance | Corrosion Resistance | Best Application |
|---|---|---|---|---|
| Polyurethane | ★★★★★ | ★★★★ | ★★★★ | Abrasive copper/gold ores |
| Rubber | ★★★ | ★★★★★ | ★★★★★ | Coal flotation, low impact |
| Ceramic Composite | ★★★★★ | ★★★ | ★★★★★ | High silica, extremely abrasive ores |
| Metal Alloys | ★★★★ | ★★★★ | ★★ | General applications |
Different flotation circuits require different wear part approaches:
Copper/Gold Flotation (High Abrasion) – Polyurethane rotors and stators provide exceptional wear resistance against sharp, abrasive particles. The elastic nature of polyurethane also absorbs impact forces, reducing crack formation.
Coal Flotation (Low Impact, Chemical Exposure) – Rubber components offer excellent chemical resistance and flexibility at a lower cost point.
High-Silica Ores (Extreme Abrasion) – Ceramic composite wear parts combine the hardness of ceramics with the structural strength of metal backing, delivering maximum wear life.
| Ore Type | Recommended Material | Expected Wear Life Increase | Cost Benefit |
|---|---|---|---|
| Copper ore | Polyurethane | 2-3x conventional | High |
| Gold ore | Polyurethane | 2-3x conventional | High |
| Coal | Rubber | 1.5-2x conventional | Medium |
| Lead-zinc ore | Ceramic composite | 3-4x conventional | Very High |
| Phosphate | Polyurethane | 2x conventional | Medium-High |
When selecting flotation rotor and stator materials, consider the following factors:
1. Ore Hardness and Abrasiveness – Use the Bond Work Index and abrasion index to assess wear severity. Higher values indicate greater wear intensity.
2. Slurry Chemistry – pH levels and reagent types affect corrosion rates. Polyurethane offers excellent chemical resistance across a wide pH range.
3. Impact Intensity – Coarse feed particles create higher impact forces. Polyurethane and rubber absorb impact better than rigid ceramics.
4. Temperature – Elevated temperatures can affect material performance. Consult with suppliers about temperature limits.
5. Cell Size and Speed – Larger cells and higher impeller speeds generate more wear. Consider upgrading to more wear-resistant materials for demanding applications.
For additional guidance on selecting the right flotation rotor and stator, consult with an experienced wear parts supplier.
When procuring flotation wear parts, ensure you provide the following information to your supplier:
Required Information:
Flotation cell model and size
OEM part numbers (if replacing original parts)
Ore type and characteristics (hardness, abrasiveness, chemistry)
Current operating conditions (impeller speed, slurry density, pH, temperature)
Current wear part service life
Drawings Needed:
Original equipment drawings (if available)
Dimension drawings of existing parts
Installation drawings
Material Selection:
Based on ore characteristics and operating conditions
Sample testing for material verification
Supplier Evaluation Checklist:
Engineering design capability
Material selection expertise
OEM compatibility
Manufacturing quality control
Wear-life recommendations
Export experience
Quality inspection procedures
Technical support
After-sales service
For a comprehensive list of qualified suppliers, review our flotation equipment spare parts supplier guide.
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| Premature rotor wear | Incorrect material selection | Upgrade to polyurethane or ceramic composite |
| Stator cracking | Excessive impact from coarse feed | Adjust feed size; use impact-resistant rubber |
| Uneven wear pattern | Improper impeller alignment | Realign shaft and check bearings |
| Reduced air dispersion | Stator wear or damage | Replace stator; inspect air flow system |
| Vibration during operation | Imbalance or bearing wear | Balance rotor; replace bearings |
| Chemical degradation | Incompatible material | Switch to chemically resistant polyurethane |
| Low froth recovery | Worn rotor affecting bubble dispersion | Replace rotor; optimize speed settings |
| Frequent seal failure | Excessive pressure or misalignment | Inspect seal housing; verify alignment |
Effective flotation maintenance requires consistent inspection and timely replacement of wear parts.
Daily Inspections:
Check froth appearance and stability
Monitor motor current (indicates loading)
Listen for abnormal vibration or noise
Verify air flow and pressure
Weekly Inspections:
Measure rotor-to-stator clearance
Inspect tank liner condition
Check bearing temperature
Sample slurry for density and particle size
Monthly Inspections:
Detailed rotor and stator wear measurement
Shaft alignment verification
Air pipe inspection
Lubrication system check
Replacement Timing:
Replace rotors when wear exceeds 40-50% of original thickness
Replace stators when geometry is compromised
Replace tank liners when perforation risk exists
Customer Type: Copper ore processing plant in South America
Ore Type: High-grade copper ore with moderate abrasiveness
Operating Conditions: 8 flotation cells, impeller speed 280 RPM, slurry density 35% solids, pH 10.5
Problem: The plant was experiencing rotor and stator failures every 4-6 months, resulting in excessive downtime and replacement costs. Annual maintenance costs exceeded budget by 35%.
Solution: The plant switched to polyurethane flotation rotors and stators manufactured by HUATAO, matched to their specific ore characteristics. A predictive maintenance program was also implemented with regular wear measurements.
Result:
Rotor/stator service life extended from 5 months to 14 months
Maintenance downtime reduced by 62%
Annual flotation maintenance costs reduced by 41%
Mineral recovery maintained at 92.5%
ROI achieved within 8 months
1. What is the most cost-effective material for flotation rotors and stators?
The most cost-effective material depends on your specific ore characteristics. For highly abrasive copper and gold ores, polyurethane provides the best balance of wear resistance and cost-effectiveness. For coal flotation, rubber offers excellent value. For extremely abrasive ores with high silica content, ceramic composites deliver the longest service life despite higher initial costs.
2. How often should flotation rotors be replaced?
Replacement frequency depends on ore abrasiveness, operating conditions, and material selection. Under typical copper flotation conditions, rubber rotors last 4-6 months, while polyurethane rotors can last 12-18 months. Regular wear measurements help determine optimal replacement intervals for your specific application.
3. Can OEM replacement parts achieve the same performance as original parts?
Yes, when manufactured by experienced suppliers with proper engineering design and quality control. High-quality OEM-compatible parts can match or exceed original performance while offering better cost-effectiveness. Ensure your supplier provides material reports and dimensional verification.
4. How do I know if my flotation stator needs replacement?
Signs include visible wear or deformation, reduced air dispersion efficiency, uneven froth formation, and increased vibration. Regular stator wear measurements help identify replacement timing before performance degradation occurs.
5. What is the most common cause of premature rotor failure?
Premature rotor failure is most commonly caused by incorrect material selection for the specific ore type and operating conditions. Other causes include improper impeller speed, excessive feed particle size, poor maintenance, and low-quality manufacturing.
6. How can I reduce flotation wear part replacement costs?
Extend component life through proper material selection, optimize operating parameters to reduce unnecessary wear, implement predictive maintenance to prevent catastrophic failures, and work with a reliable supplier who offers quality OEM-compatible parts at competitive prices.
7. Does reducing impeller speed extend wear part life?
Yes, lower impeller speed reduces slurry turbulence and erosion, but it may also affect flotation efficiency. The optimal speed balances wear life with recovery performance. Adjust speed within manufacturer recommendations while monitoring recovery results.
8. What should I look for in a flotation wear parts supplier?
Look for engineering design capability, material selection expertise, OEM compatibility, manufacturing quality, wear-life recommendations, export experience, quality inspection procedures, technical support, and after-sales service. Choose a supplier who recommends different materials based on your specific application.
9. How does polyurethane compare to rubber for flotation wear parts?
Polyurethane offers superior wear resistance for highly abrasive ores, lasting 2-3 times longer than rubber in copper and gold flotation applications. Rubber provides better impact resistance and lower cost, making it suitable for coal and less abrasive applications. Choose based on your ore characteristics.
10. Can flotation recovery improve with better wear parts?
Yes, consistent rotor-stator geometry maintains optimal bubble generation and slurry circulation, directly improving recovery performance. Worn parts create uneven flow patterns and reduced air dispersion, negatively affecting recovery. Replacing worn parts before performance degradation helps maintain stable recovery.
Reducing flotation maintenance costs should never come at the expense of mineral recovery. Instead of extending replacement intervals blindly or purchasing the lowest-cost components, mining operations achieve better long-term results by combining optimized operating conditions, predictive maintenance, and high-quality wear-resistant parts.
Choosing the right flotation rotor and stator materials, monitoring wear proactively, and working with an experienced mining wear parts supplier can significantly reduce downtime, improve equipment reliability, and maximize plant profitability over the entire lifecycle of the flotation circuit.
Related Products:
Related Technical Guides:
Why More Mining Plants Are Switching To Polyurethane Flotation Rotor And Stator Wear Parts
How Do I Calculate Hydrocyclone Capacity For Mineral Processing
Hydrocyclone Selection For Mineral Processing Full Engineering Guide
OEM Compatible Crusher Wear Parts Technical Selection Failure Prevention And Sourcing Strategy
Related Buyer Guides:
Best Flotation Equipment Spare Parts Suppliers How To Choose For Longer Wear Life Higher Recovery
OEM Flotation Wear Parts Guide Rotors Stators Supplier Selection 2026
Who Are The Leading Flotation Rotor And Stator Manufacturers In China
Related Comparison Articles:
Which Flotation Rotor And Stator Last The Longest A Complete Guide For Mining Buyers
Best Alternative To Metso Crusher Wear Parts Complete Engineering And Procurement Guide
Which Crusher Wear Parts Supplier Exports To Australia And Canada Complete Buyers Guide
Contact: Annie Lu
Email: annie.lu@huataogroup.com
Phone / WhatsApp: +86 180 3242 2676
Website: http://www.tufflexscreen.com
We warmly welcome customers from around the world to contact us and establish mutually beneficial partnerships. Whether you need OEM flotation rotor and stator replacements, customized mining wear parts, or complete mineral processing wear solutions, HUATAO is ready to support your project with professional engineering advice and reliable manufacturing expertise.
Tags: flotation maintenance, flotation rotor, flotation stator, mining wear parts, mineral processing, cost reduction, OEM replacement, polyurethane flotation parts, rubber flotation parts, copper flotation, gold flotation, predictive maintenance, spare parts inventory
can not be empty
can not be empty
HUATAO GROUP - SCREENS
ADD : No.298 Zhonghua North Street, Shijiazhuang 050000 China.
TEL : +86 0311 80690567
EMAIL ：market@huataogroup.com
Web: www.tufflexscreen.com
WhatsApp & WeChat : +86 18033763037
