SHALE SHAKER SCREEN

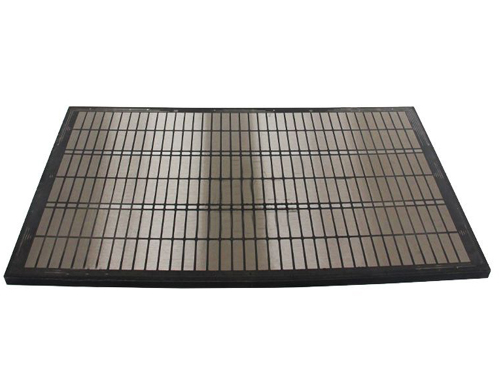

Composite Frame Screen

Composite Frame Screen

Specification

Composite frame screen is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining, or directly bonded on the frame.

Click directly to send a message via WhatsApp

Description Inquire

Description Of Composite Frame Screen:

Composite frame screen is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining, or directly bonded on the frame.



Specification Of Composite Frame Screen:

Screen Model Range of Mesh Dimension( Width x Length)
HT - 1/1 20-325 585×1165mm
HT - 1/2 20-325 585×1165mm
HT - 2/1 20-325 635×1250mm
HT - 2/2 20-325 635×1250mm
HT - 3 20-325 610×660mm



Feature Of Composite Frame Screen:

1. Every layer of wire cloth has different meshes,accurateky and reasonably making screening more micromesh.

2. High-strength composite frame screen and moderate tensional screening cloth, that form a reliable whole,greatly enhance the tolerable flow.

3. Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing .

4. Wire cloth is divided into several independent samall cloths to prevent excessive expansion of local damage.

5. Excellent high-strength composite frames enhance corrosion resistance, Have good shock absorption and extend working life of screen.



FAQs of Petroleum Vibrating Screen:

 1) What is a petroleum shaker screen?
Petroleum shakers are components used in the oil and gas industry to separate solids and liquids during drilling. They are installed in shaker machines used to filter solid particles from drilling mud.

 2) What material is used to make petroleum shaker screen?
Screen Medias are made from different materials including wire mesh, perforated metal, and synthetic materials like polyurethane and rubber. Each material has unique characteristics that affect the efficiency of the vibrating screen.

 3) How to choose a suitable petroleum shaker?
The size and type of oil shaker depends on the drilling operation and the type of sediment that needs to be filtered out. Factors to consider include mesh size, mesh size, and the material used to make the screen.

 4) What are the benefits of using a petroleum shaker?
Petroleum shaker screen provide several benefits during drilling, including reduced downtime, improved drilling efficiency, and a cleaner and safer working environment. Screens help remove solid particles from drilling mud, preventing damage to drilling equipment and reducing the risk of accidents.

 5) How long can the petroleum shaker be used?
The service life of a petroleum shale shaker depends on several factors, including the type of material used, frequency of use and drilling conditions. On average, a vibrating screen can last from 20 to 250 hours of continuous use. Regular maintenance and proper storage will help extend the life of your screen.
