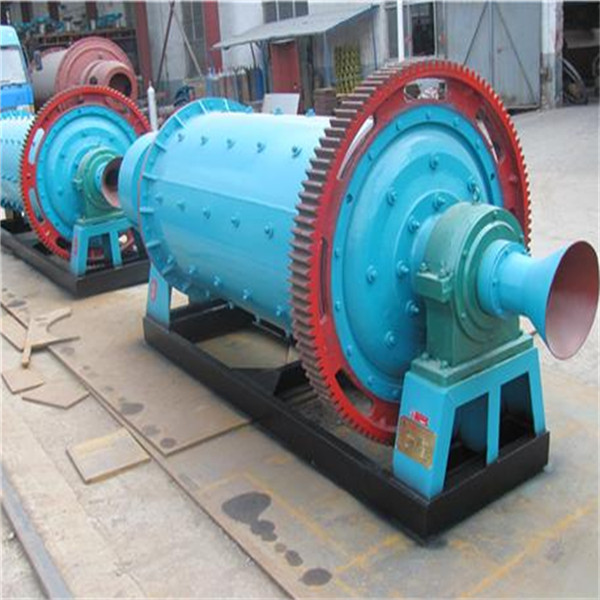

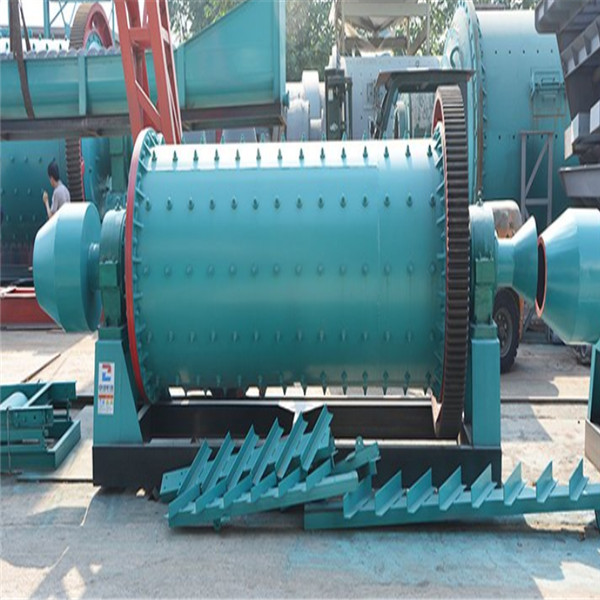

Lattice Ball Mill

The ore discharge end of the lattice ball mill has a grid plate to force the ore discharge, the ore pulp stored in the mill is small, and the finely ground ore particles can be discharged in time, so the grid type ball mill has high productivity and coarse product size. It is a common method in mineral processing production. This kind of ball mill changes the original structure of the mill, integrates the body and the chassis, and can be placed on the basic plane at one time during installation. The main bearing adopts double-row spherical roller bearings, which can reduce energy consumption by 30%. , improve the fine-grained, and increase the processing kinetic energy by 15~20%.

Working Principle
The materials are spirally and evenly entered into the first chamber of the mill from the feeding device through the feeding hollow shaft. There are stepped lining plates or corrugated lining plates in the chamber, and steel balls of different specifications are installed inside. The rotation of the cylinder generates centrifugal force to bring the steel balls to a certain height. Falling, pounding and grinding the material. After the material reaches the rough grinding in the first warehouse, it enters the second warehouse through the single-layer partition board. The warehouse is inlaid with a flat lining board and has steel balls to further grind the material. The powder is discharged through the unloading plate to complete the grinding operation.

Performance Characteristics
l, The transmission adopts rolling bearing instead of sliding bearing, the friction force is greatly reduced, the start-up is easy, and the energy saving is remarkable.
2. The discharge end adopts a cone design, which not only increases the volume, but also forces the material and steel balls at the cone end to be classified. The closer to the outlet, the smaller the diameter of the steel ball, which increases the effect of repeated grinding.
3. The grooved annular lining plate is used to increase the contact area of ​​the ball and ore, strengthen the grinding effect, and reduce the energy consumption.
4. The overall frame is adopted, which is convenient for civil construction (construction of a cement foundation) and equipment installation.
