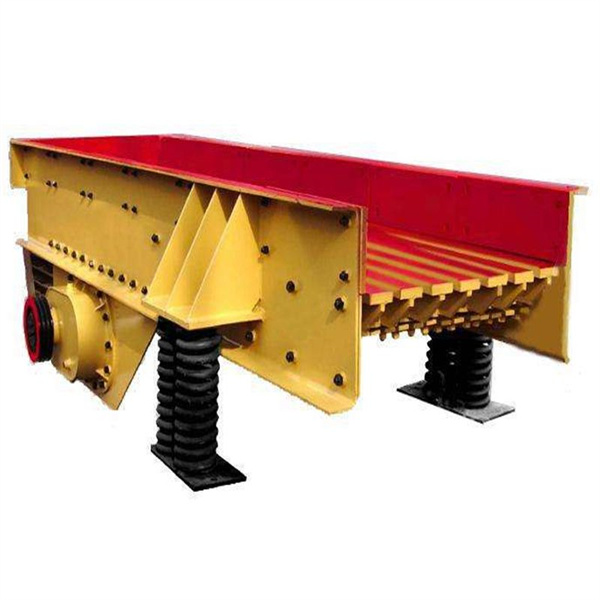

Linear Vibrating Feeder

Description Inquire

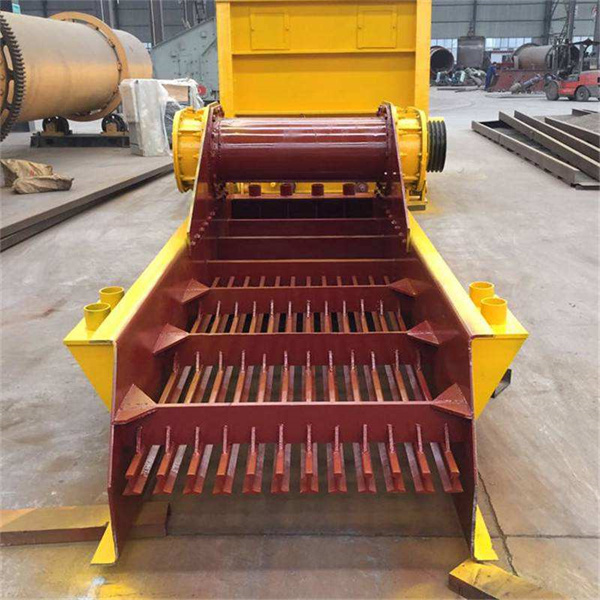

ZSW series linear feeder drives the double eccentric shaft vibration exciter by the motor through the V-belt. The two eccentric shafts in the vibration exciter are guaranteed to rotate in the opposite direction by meshing gears at both ends. When the two eccentric shafts are assembled, the eccentricity forms a certain angle. The centrifugal force generated causes the box to produce reciprocating linear projection vibration, and the material moves forward continuously during the vibration process. The front end of the machine is equipped with pre-screening screen bars to remove soil impurities or pre-screen materials.

Uses and Features

ZSW series linear vibrating feeders are widely used in transportation, mining, metallurgy, water conservancy and other industries, and are ideal supporting equipment for crushing machinery. This machine has the characteristics of compact structure, strong excitation force, large feeding amount, stable vibration, reliable operation, long service life, large feeding particle size, impact resistance, and pre-screening of materials.

Model	MAX Feeding（MM）	Chute Size（MM）	Capacity（T/H）	Power（KW）	Vibrating Frequency（f/min）·	Dimension (mm)	Chute Angle	Double Swing（mm）
ZSW380-96	600	1000*3800	70-200	15	680	388222112340	0	6-8
ZSW380-120	600	1200*3800	90-450	15	680	388224112340	0	6-8
ZSW380-140	600	1400*3800	150-500	18.5	680	388226112340	0	6-8
ZSW380-160	600	1600*3800	200-550	22	680	388228202340	0	6-8
ZSW490-110	600	1100*4900	120-400	18.5	680	500025002665	0	6-8
ZSW490-120	600	1200*4900	150-450	18.5	680	500026002665	0	6-8
ZSW490-130	600	1300*4900	160-480	22	680	500027002420	0	6-8
ZSW490-140	600	1400*4900	180-500	30	680	500028002665	0	6-8
ZSW490-160	600	1600*4900	220-550	30	680	500030002665	0	6-8
ZSW490-180	600	1800*4900	250-650	37	680	500032002665	0	6-8
ZSW490-200	850	2000*4900	500-800	37	680	500035202420	0	6-8
ZSW490-220	850	2200*4900	620-1000	37*2	680	500043002420	0	6-8
