Hydrocyclone

Hydrocyclone

Description Inquire



The hydrocyclone is a classification device that uses centrifugal force to accelerate the sedimentation of ore particles. It occupies a small area, is cheap, has a large processing capacity, and has high classification efficiency, and can obtain very fine overflow products, which are mostly used for classification equipment in the second stage of closed-circuit grinding.


Product advantage
The way of involute feeding through the inlet branch reduces the turbulence of the burst emanative flow when materials entry, makes a smooth movement of liquid inside cyclone, therefore gives a sharp classification.
The rational length proportion of column and cone and reasonable insert depth of vortex finder
Wear -resistant rubber as liners prolongs the service life by 2-4 times

Product Work Principle

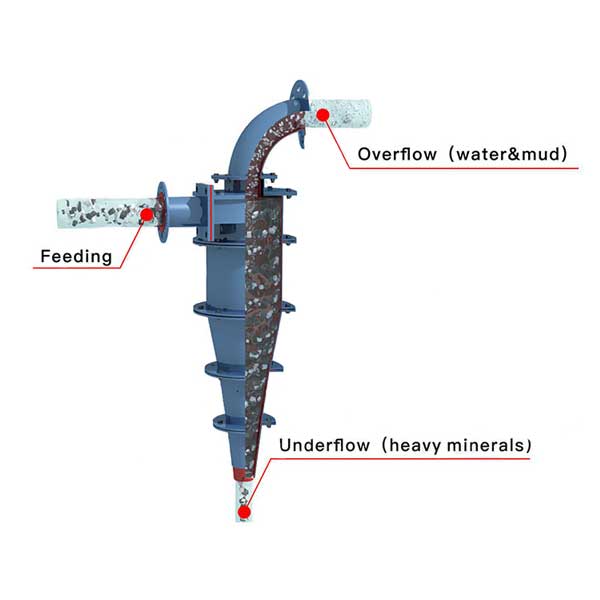

The working principle of our hydrocyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different. So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.
Working modes of our hydrocyclone includes classification, condensation, dehydration, desliming, sand removing sand, washing, ultrafine classification etc.

Specification

Capacity
(m3 /h)

Separation Particle Size
(μm)

Diameter of Overflow Outlet
(mm)

Diameter of Spigot
(mm)

Inlet Pressure
(MPa)

150

10-23

25-74

30-50

8-22

0.060-0.15

200

17-38

28-80

40-65

16-32

0.060-0.15

250

24-53

30-82

65-100

16-40

0.060-0.15

300

40-100

36-90

65-120

20-40

0.060-0.15

350

56-118

40-100

80-120

30-70

0.060-0.15

375

74-157

42-105

90-135

30-70

0.060-0.15

450

90-192

44-110

100-150

30-70

0.060-0.15

500

128-300

50-115

130-220

35-100

0.060-0.15

610

200-468

57-125

160-260

65-110

0.060-0.15

660

237-524

60-130

180-280

80-150

0.060-0.15
