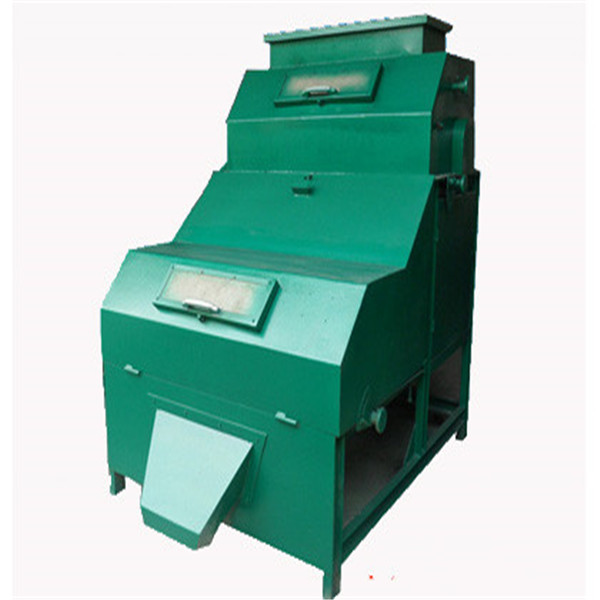

Application of aggregate magnetic separator:
It is widely used in the screening of ferromagnetic substances in abrasives, refractories, ceramics, chemicals and other non-metallic minerals.
Structural features of HT series aggregate magnetic separator:
Reasonable magnetic arrangement; easy to pick up aggregate; automatic operation;
HT series aggregate magnetic separator performance characteristics:
Long-lasting work; stable operation; convenient maintenance.
|
|
Cylinder diameter（mm） |
Cylinder length（mm） |
Cylinder QTY |
Magnetic induction (GS) |
Selected material particle size (mm) |
Productivity (t/h) |
Motor power（kw） |
Machine size |
weight（kg） |
|
HT1-60 |
320 |
600 |
1 |
3500-8000 |
0-10 |
1-1.5 |
0.75 |
1020*1010*1170 |
320 |
|
HT1-80 |
320 |
800 |
1 |
3500-8000 |
0-10 |
1-1.5 |
0.75 |
1220*1010*1170 |
300 |
|
HT2-60 |
320 |
600 |
2 |
3500-8000 |
0-10 |
1-1.5 |
1.5 |
1170*880*1450 |
350 |
|
HT2-80 |
320 |
800 |
2 |
3500-8000 |
0-10 |
1-1.5 |
1.5 |
1370*1010*1450 |
450 |
|
HT2-100 |
320 |
1000 |
2 |
3500-8000 |
0-10 |
1-1.5 |
1.5 |
1530*1010*1450 |
480 |
