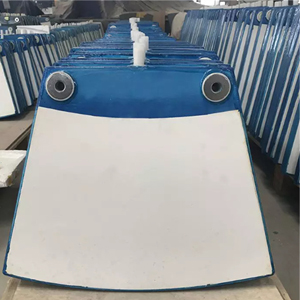

Ceramic Filter Plate

Description Inquire

Ceramic filter plates, also known as ceramic filter membranes, ceramic plates, ceramic plates, etc., It is the core component of the ceramic filter and is a new type of porous functional ceramic material. Its interior is covered with criss-crossing and interconnected capillary pores (about 1 to 10 microns in diameter). They are the channels for the filtrate (water). This component is called the plate base.

Main features:

1. The filtration accuracy covers fine filtration, microfiltration, ultrafiltration, nanofiltration, and reverse osmosis;

2. High mechanical strength, stable chemical properties, good wear resistance, low resistance, anti-clogging, and easy recoil;

3. High efficiency, high yield, and uniform and stable filtration aperture.

Technical Parameters:

Filtration flux (clean water pressure 0.1Mpa)		800-1000L·centipoise/h·m2
Air pressure backwash test pressure (wet state)		≥0.1Mpa
Operation backwash pressure		≤0.1Mpa
Ultrasonic combined chemical cleaning pressure		≤0.1Mpa
Assembly precision	Parallelism with the plate membrane surface	±0.1mm
	Height with the plate membrane surface	8mm±0.1mm
Disc precision	Assembly hole midpoint and diagonal error	≤2mm
	Error between each plate	3mm±1mm
Filter membrane wear resistance time: (Not damaged by scrapers or other hard objects)		≥7000h
Porosity		≥42%
Flexural strength		≥30Mpa
