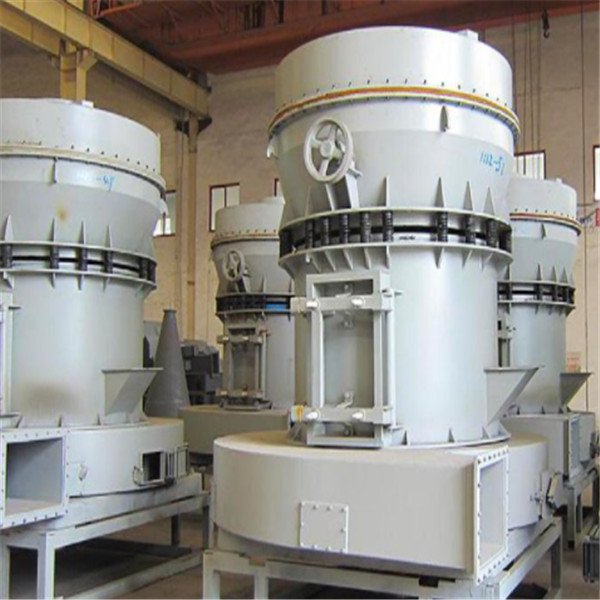

Raymond Mill can be used for the high-fine power processing in minerals, chemicals, construction, and other industries. Raymond mills can be used to process more than 280 non-flammable and explosive materials with a Mohs hardness of less than 9.3 and a humidity of less than 6%, such as barite, calcite, and potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, insulation, etc.
Application areas: Mining, building materials, chemical, metallurgy and other industries.
Applicable materials: limestone, calcite, barite, dolomite, potassium feldspar, marble, talc, gypsum, kaolin, bentonite, phosphate rock, manganese ore, iron ore, glass, ceramics, activated carbon, carbon black, etc.
Features:
1. Compared with ball mills, Raymond mills have higher efficiency and lower power consumption.
2. Raymond mill has a vertical structure, small footprint, and small one-time investment.
3. Strong wear resistance and reliable operation. The wearing parts are made of high manganese steel and have a long service life.
4. The non-polluted environment, all these characteristics meet the requirements of green milling production. The small dust, the clean workshop.
|
Type |
grinding roller |
grinding ring |
Feed particle size(mm) |
Finished particle size(mm) |
Output(t/h) |
Motor power(kw) |
Machine size(mm) |
|||
|
|
qty |
Di(mm) |
Height(mm) |
Outter diamater(mm) |
height(mm) |
|
|
|
|
|
|
HT1410 |
3 |
140 |
100 |
495 |
100 |
＜8 |
0.613-0.044 |
0.15-1.2 |
14.1 |
3340×2200×3200 |
|
HT2115 |
3 |
210 |
150 |
726 |
150 |
＜15 |
0.613-0.044 |
0.28-1.8 |
28.2 |
4480×3100×3970 |
|
HT2615 |
3 |
260 |
150 |
865 |
150 |
＜15 |
0.613-0.044 |
0.35-2.8 |
35.7 |
5000×4100×4850 |
|
HT2715 |
3 |
270 |
150 |
884 |
150 |
＜15 |
0.613-0.044 |
0.40-3.4 |
42.7 |
5050×4150×4900 |
|
HT3016 |
4 |
300 |
160 |
990 |
160 |
＜20 |
0.613-0.044 |
0.6-4.5 |
55 |
5250×5000×5500 |
|
HT3216 |
4 |
320 |
160 |
1073 |
160 |
＜25 |
0.613-0.044 |
1.0-5.2 |
72.5 |
7700×7200×8800 |
