Vibro Separator

Vibro Separator

Description Inquire

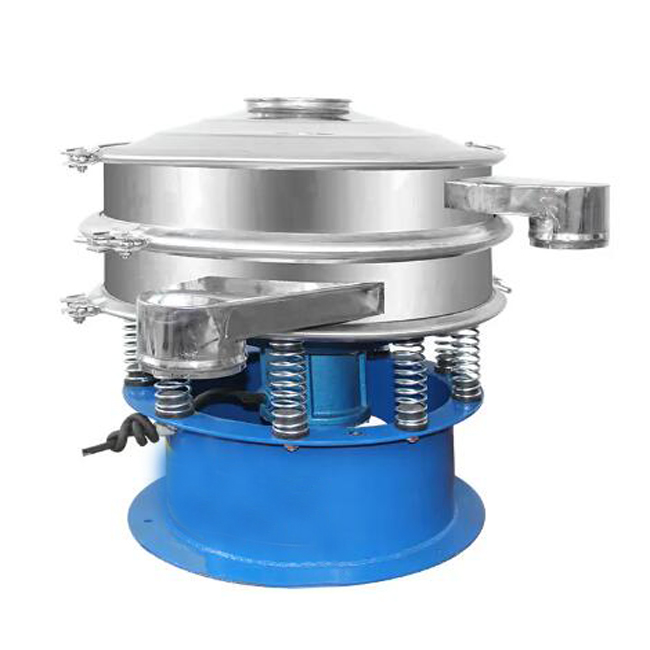

Vibro Separator:

Diameter: 400mm(15"), 600mm(24"), 800mm(31"), 1000mm(39"), 1200mm(47"), 1500mm(59"), 1800mm(70"), 2000mm(78")

Mesh size: 2-500 mesh

Capacity: 100-3300kg/h

Screen frame: 1-5 layers (3 layers is best)

Material: Q235 carbon steel, stainless steel 304 or 316L, polypropylene plastic

Motor power: 0.25Kw to 2.2Kw or customized

Power supply: 220/240/380/415/450V can be used. 50 or 60HZ.

Application: Suitable for any Powder, Particle, Liquid applications such as silica, ceramics, powder coatings, tapioca starch, coffee beans, copper powder, silver powder, milk etc.

Commitment: 5 Days Delivery/30-Day Returns/Support Customization

Click directly to send a message via WhatsApp

Machine Description:

The Vibro Separator is specially designed to improve the quality of your powder, granule or liquid products for inspection screening of your products, it is ideal for screening incoming ingredients and final production inspection of finished powders, by increasing the number of sieve layers, The product is sieved with different finenesses to achieve precise particle size distribution.

Vibro Separator has 1-layer, 2-layer, 3-layer, 4-layer and 5-layer sieve plates, it is suitable for sieving from 2 to 500 meshes, and the products can be classified into 2-6 different specifications through different meshes , and eliminates excessive contamination in various applications. Machine contact parts are made of Q235 carbon steel, SS316L, SS304 stainless steel, etc. Interchangeable screens can be provided according to user requirements, providing various sizes from 400 mm to 2000 mm diameter, allowing 100 to 5,000 kg/hour of production, It depends on the product, mesh size and the feed flow of the machine



Uses of Vibro Separator

Classification and screening: Divide the solid particles into different particle groups of equal size. A vibro sifter can accurately and continuously classify 2-6 kinds of specifications at the same time, which is suitable for the classification of granular and powdery materials in multiple industries.

Removal of impurities: Quickly remove small or large particles with a low percentage.

Solid-liquid separation: It can quickly remove insoluble substances in various types of slurries. It can filter up to 100 cubic meters per hour. It is suitable for filtration of liquids such as ceramics and pigments



Main Advantages
1. Vibro Separator with high precision and high efficiency screening ablity and applied to all kinds of food/ chemical powder, granules.

2. 304 and 316 stainless steel material, make sure the quality of raw material.

3. New type of frame structure, long service life, only 3-5 minutes to replace the screen.

4. Fully automated, continuous 7/24 operation.

5. Fully closed structure, the powder don't float in the sky, the liquid don't leak, no mesh jams.



Technical Data

Model

Diameter
(mm)

Feeding Size
(mm)

Frequency
(RPM)

Layers

Power
(kw)

Capacity
(kg/h

HT-400

400

<10

<1500

1-5

0.18

100

HT-600

600

0.25

200

HT-800

800

0.55

500

HT-1000

1000

0.75

800

HT-1200

1200

1.1

1200

HT-1500

1500

1.5

1800

HT-1800

1800

2.2

2000

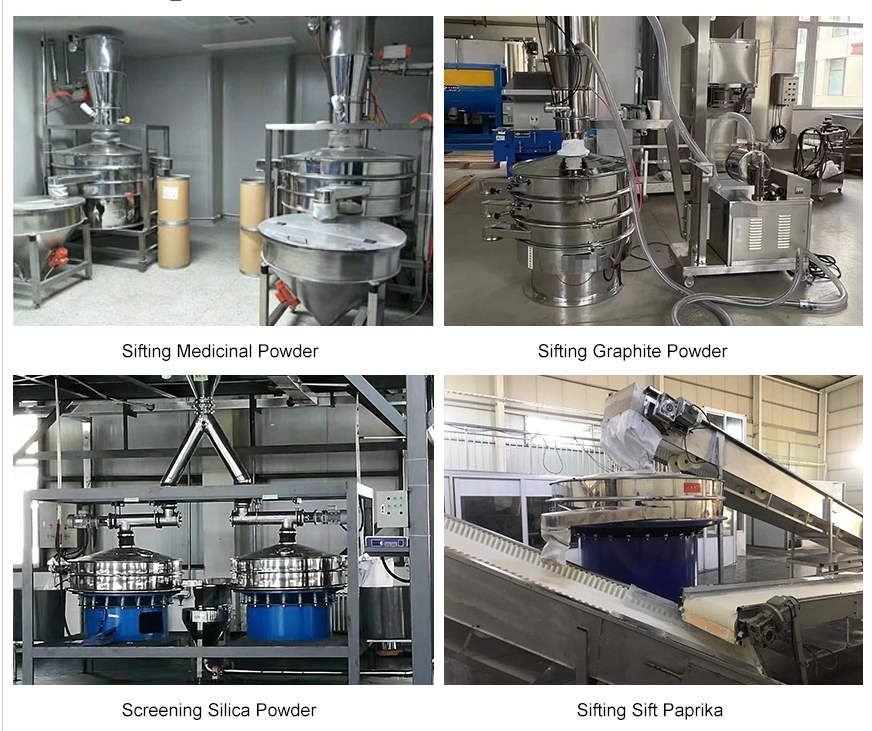

Application Range:
1.Abrasive & Ceramics: alumina, quartz sand, slurry, atomizing soil particles.
2.Chemical: resin sand, pigment, washing powder, micropowder, paint, soda ash, lemon powder, rubber and plastics.
3.Food: sugar, salt, soda, MSG (monosodium glutamate), milk powder, soy-bean milk, yeast, juice, soy sauce, vinegar, etc.
4.Paper Making: coating, coated slurry, black-and-white liquid, waste liquor, papermaking liquid, waste water recycle.
5.Metallurgy: titanium oxide, zinc oxide, electromagnetic materials, metal powder, welding rod powder, etc.
6.Pharmaceutical: TCM (traditional Chinese medicine) powder, TCM liquid, western medical powder, western medical liquid, TCM & western medical particles, etc.
7.Environment Protection: rubbish, excrement, waste oil, food effluent, waste water processing, etc.
