Ceramic Lined Pipe For Lithium Battery Industry

Description Of Ceramic lined Pipe For Lithium Battery Industry

In the production of cathode materials for lithium batteries, in order to ensure the purity of the Li-Ion Battery materials, the transportation pipes are usually made of PC pipes or fiberglass pipes,etc.

Due to the reason of being washed by the wind powder mixture, the powder conveying pipeline is seriously worn, especially the elbow part. Due to the air flow changes on the bend side, the wear on the outside of the elbow is very serious, so it needs to be replaced frequently, which delays the production efficiency to a great extent.

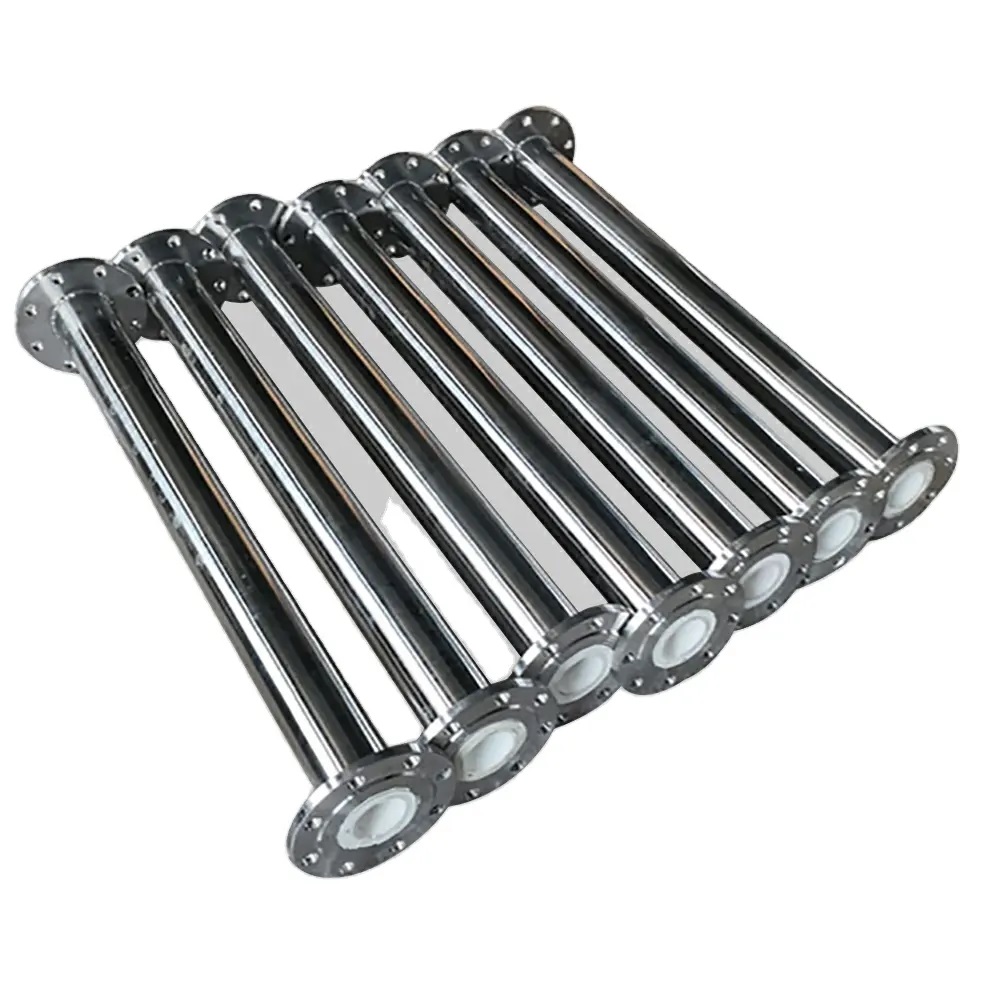

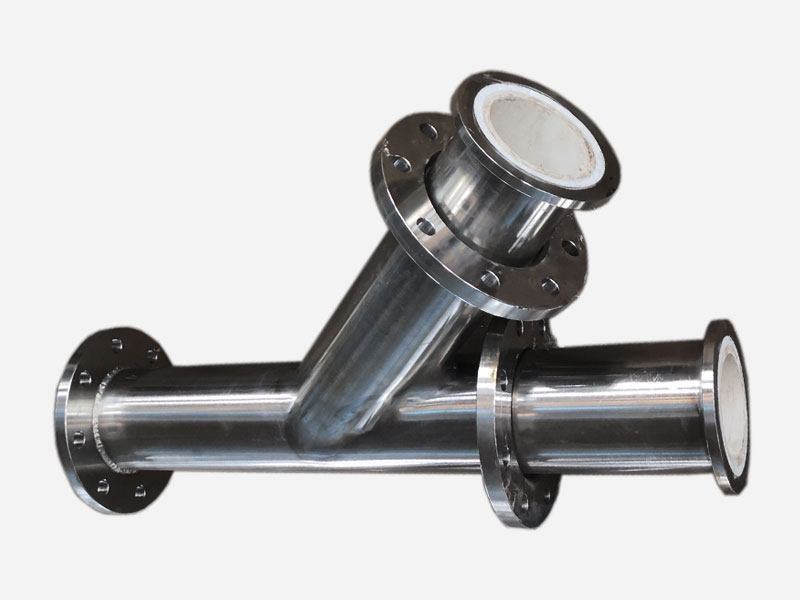

Our wear-resistant ceramic lined straight pipe/Bend/Tee is made up of 304 stainless steel pipe,adhesive and wear-resistant ceramic three layers, the inner wall of the pipeline is very smooth, good sealing, wear resistance, corrosion resistance, high temperature resistance. It can run at 750℃ for a long time, the service lift is more than 10 times of ordinary tubes.

Advantages

1. Wear resistance, long life time: the hardness can reach more than HRA88, strong wear resistance, the life time can up more than ten times of the ordinary elbow pipe.

2. Isolation of metal, ensure the purity of the powder: lithium battery powder transport is a typical metal pollution sensitive industry, metal pollution will have a serious impact on the quality of the powder, and elbow lining wear-resistant ceramics effectively isolated metal pollution, to ensure the purity of the powder.

3.The inner wall is very smooth, no blocking material: in addition to easy wear of the elbow, it is easier to encounter the problem of hanging and blocking material. Compared with other materials, wear-resistant ceramics have an obvious advantage - the more smooth the wear, which greatly reduces the occurrence of clogging and indirectly improves the transmission efficiency.

4.Corrosion resistance: the main component of our wear-resistant ceramics is alumina, sintered at high temperature of 1700℃, alumina mostly exists in the form of α-alumina, α-alumina chemical stability, strong corrosion resistance.

5. High temperature resistance: wear-resistant ceramics are sintered at high temperature, excellent temperature resistance, our ceramic viscose is high temperature resistant inorganic viscose, can make the elbow in 750℃ high temperature conditions for long-term stable operation.

Application

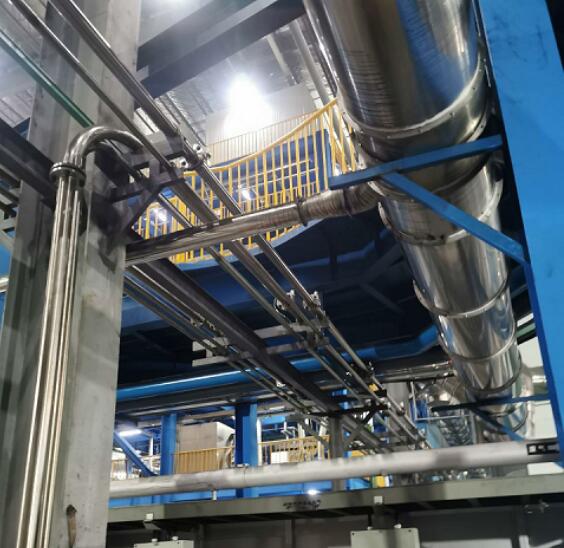

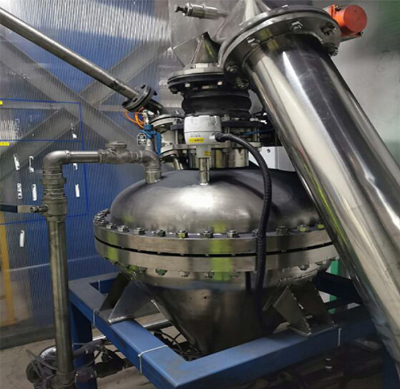

This pipe widely used for lithium battery powder pneumatic conveying system, it also can be used for Thermal Power Plant Pulverized Coal Conveying System,Dry ash conveying pipe,Stone coal system of Fossil fuel power station,Hydraulic slag conveying system and slurry transportation with larger particle size And Other powder particle power conveying systems.
