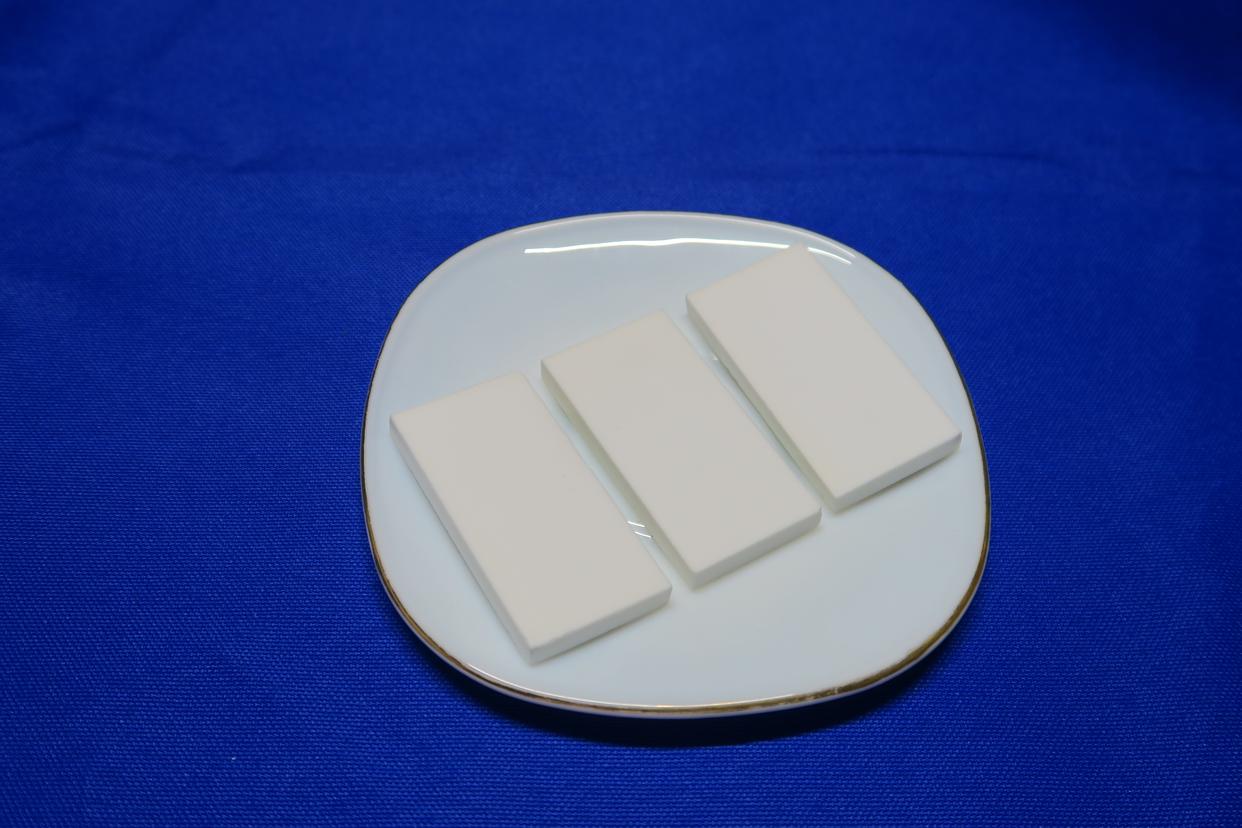

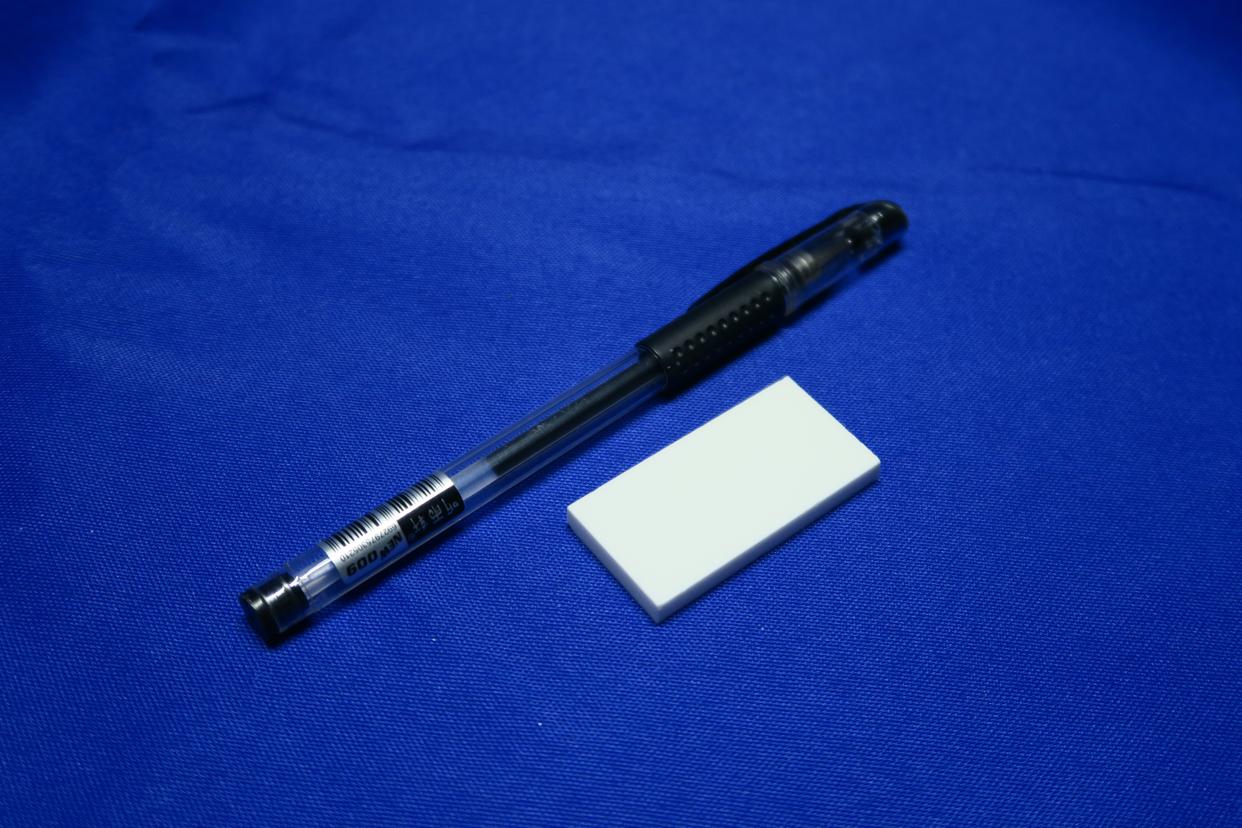

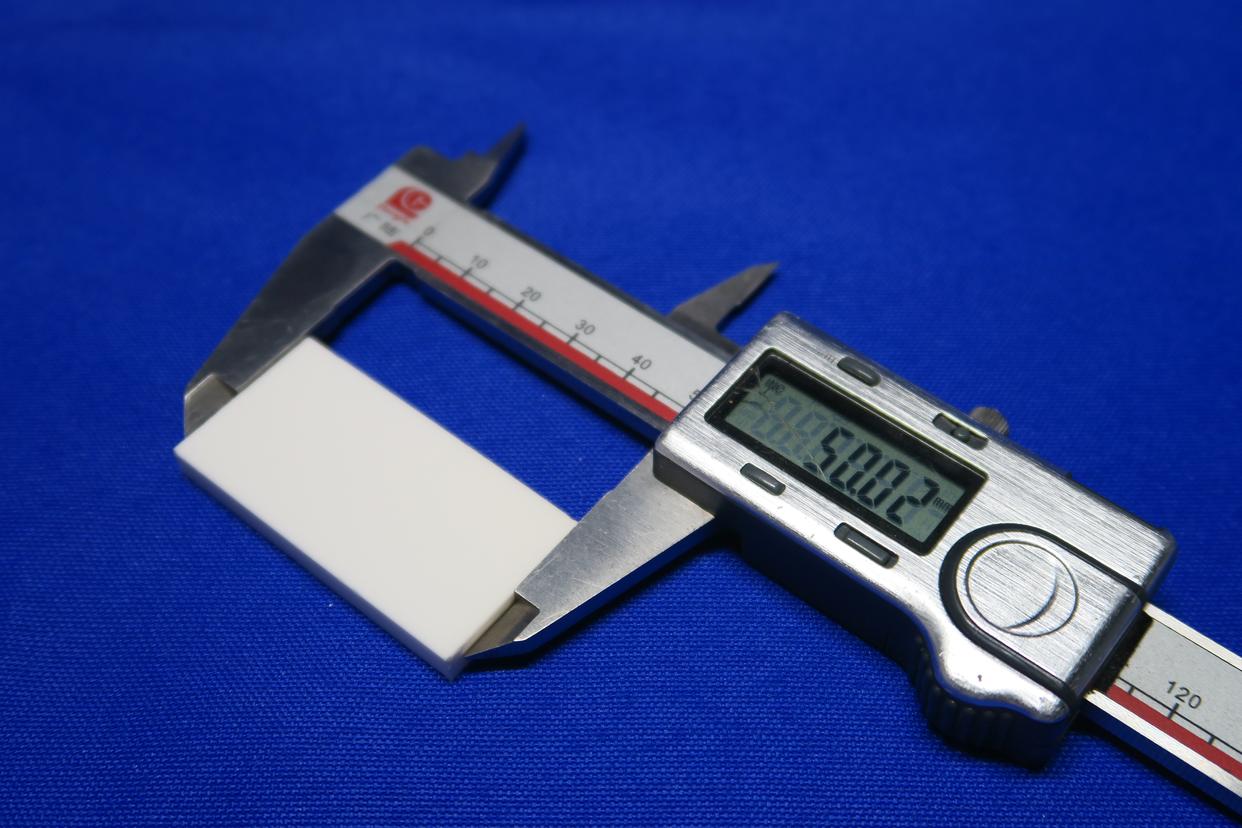

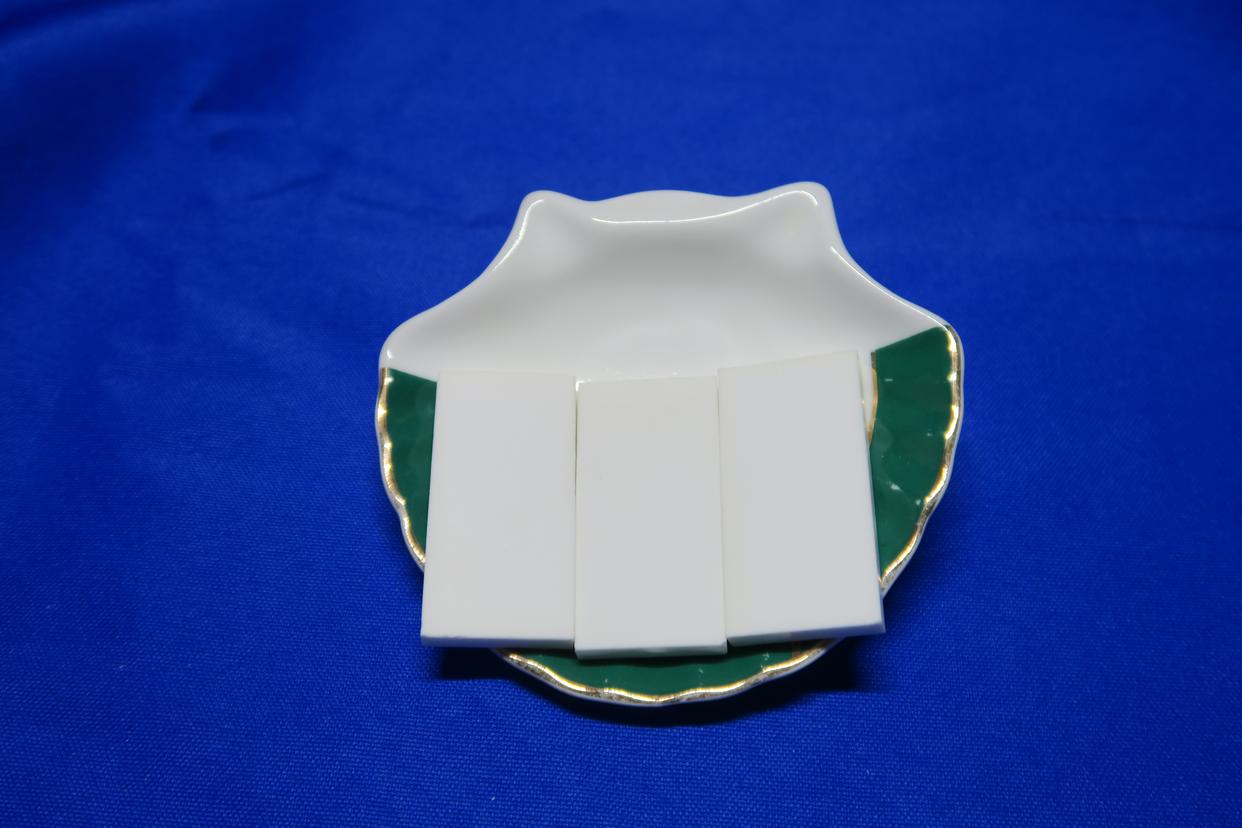

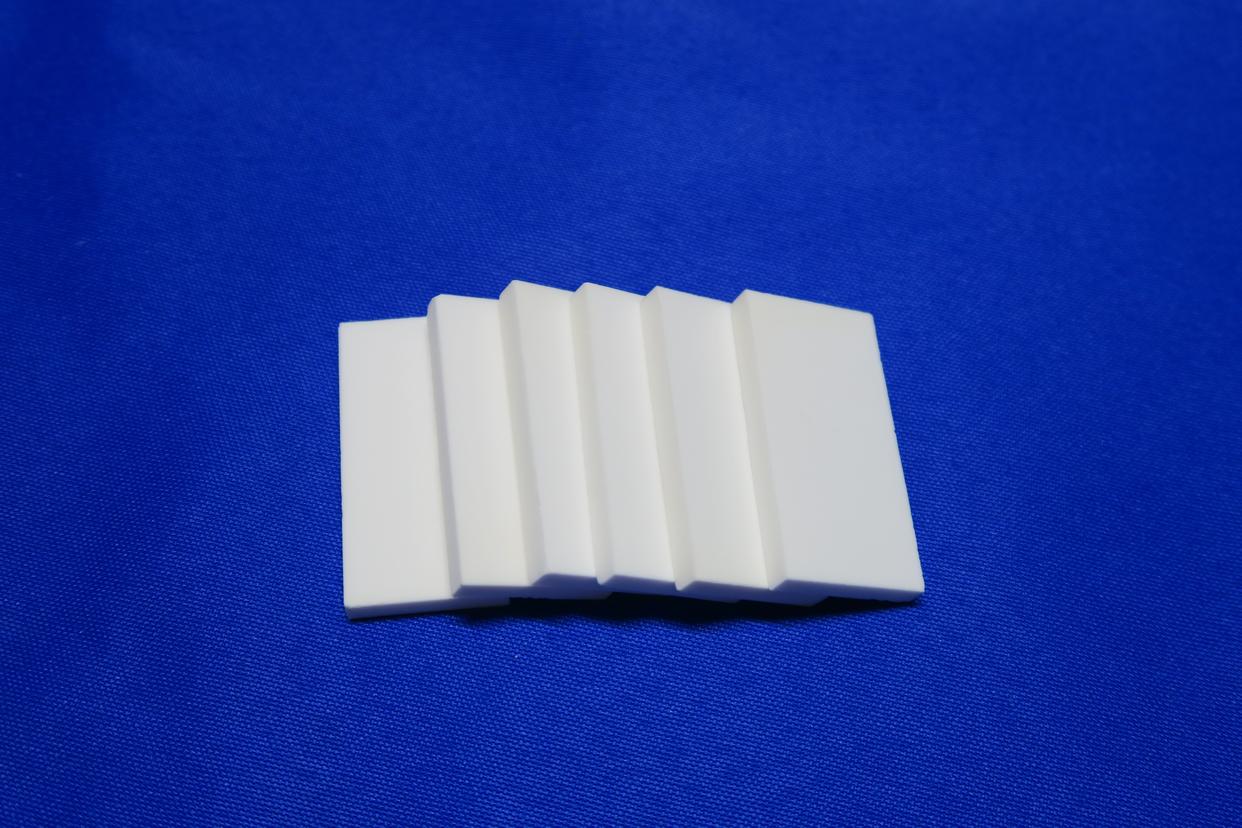

Description Of Alumina Ceramic Lining

Alumina ceramic lining also called Alumina ceramic plate, Alumina ceramic brick,Alumina ceramic mosaic, Alumina ceramic sheet.

The density is roughly 3.65g/cm3, which only half of the steel and it can greatly reduce the load of the machine.

Accordingly to different machine and working conditions, the alumina ceramic plate can be fixed to the inner wall of machine by

ceramic glue, accessory welding,rubber vulcanization and other methods.

Ceramic lining is used to protect the mechanical cylinder from direct impact and friction between the grinding body and the

material. At the same time, different forms of ceramic lining can be used to adjust the movement state of the grinding body to

enhance the grinding effect of the grinding body on the material, which helps to improve the grinding efficiency of the mill,

increase production and reduce metal consumption. In particular, traditional anti-wear treatment cannot achieve good results in

areas with severe erosion. Wear-resistant ceramic lining can be pasted on the steel shell to increase service life or isolate iron

elements from contaminating the material.





Features: dry pressing, high temperature, Rockwell hardness HR80-90, Second only to diamond in hardness. It has the characteristics of acid resistant, wear resistance, impact resistance, corrosion resistance, high temperature resistance, and convenient construction, Long lifetime.



Application:wear resisting alumina ceramic plate are widely suitable for Oil, chemical, power plant, mining and other industries.

                    Such as Cyclone Machine, Airflow Jet Mill Pulverizer Machine,Hopper, Mining chute,etc



Details Parameters:

Performance of the goods

92 Series

 95Series

97 Series

99Series

Al2O3(%)

92

95

97

99

Mohs hardness

9

9

9

9

Water absorption(%)

0.01

0.01

0.01

0.01

Rupture strength (n/mm)

40

42

44

48

The bending strength(Mpa)

255

275

285

300

Bulk density(g/cm3)

3.63

3.68

3.73

3.83
