FINE SIEVE MACHINE

High Frequency Filter Screen

High Frequency Filter Screen

Description Inquire

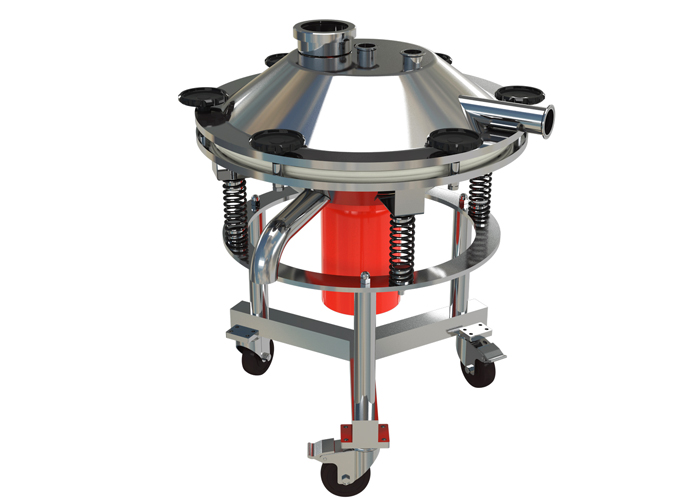

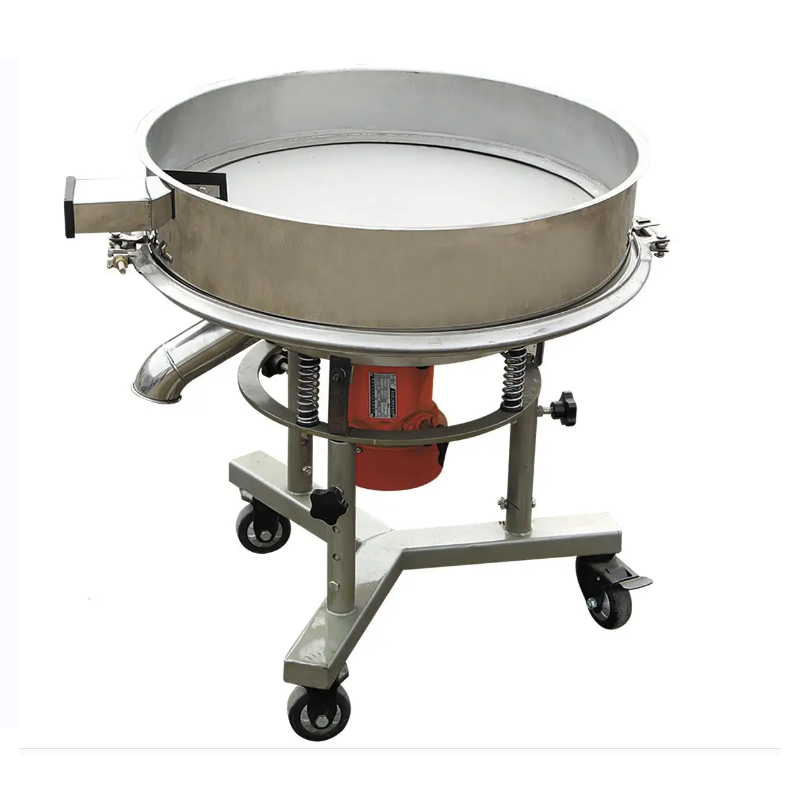

The filter screen is a small vibrating filterfor processingsolid-liquid mixtures. lt has the characteristics oflow noise,high efficiency and easy movement. lt is suitable for single-layer screening and filtration, and can handle materials withlittle production volume orless impurities.

It is used for contaminants or insoluble solids in powders or liquids, generally single-layer. Compa red with ordinary vibro sifter, the screen frame is designed to be heightened to prevent liquid splashing during the screening process.

Accessories: Beam ring, accessories, outlet, open top cover, motor, nylon brake wheel

Click directly to send a message via WhatsApp

Application:

Filter screen applicable industries

Chemical industry: coatings, inks, color pastes, paints, latex paints, aluminum pastes.

Food industry: starch, soy milk, juice, beverages, dairy products, condiments.

Other industries: mud, pulp, waste liquid, Chinese and Western medicinal liquids, etc.



FEATURES

★Small size, light weight, easy to move;

★The height of the high-frequency filter screen can be adjusted by itself, easy to operate, sturdy and durable;

★Low energy consumption and high efficiency. Compared with similar models, the energy consumption is reduced by half while the output can be doubled;

★High screening accuracy and wide application range, applicable to powder, granules and slurry;

★The screening effect on fine particles and high-viscosity materials is more obvious and better;

★Made of stainless steel, it has beautiful appearance and strong corrosion resistance, and doesn't change the material properties.



Technical parameter:

Model

Power(kw)

Screen Dia.(mm)

Excitation force(kn)

Weight(kg)

HT-450

0.18

430

3

53

HT-600

0.37

580

5

65

HT-800

0.55

780

8

82

HT-1000

0.75

960

10

135

HT-1200

1.1

1160

15

180
