Straight screen(Straight vibrating screen) could be used in a wide range of sorting: granular, powdery, fine, rough, heavy, light, slurry, liquid, etc. can be screened at the front end of the production line. In the feeding system, foreign matter in the raw materials is separated. Because it is connected in series in the system and automatically separates foreign matter, it is known as the "safety officer" of the food production line. The flour sifter can replace the manual observation and sorting of foreign matter.

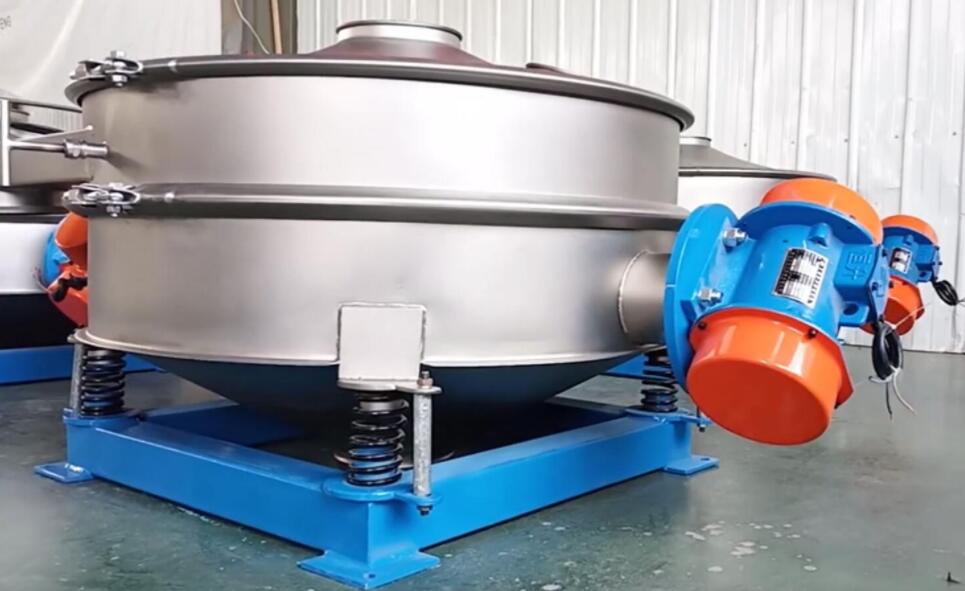

Direct discharge vibrating screener is specially designed for impurities removal. High performance, low noise, fully enclosed structure, no dust, good continuous separation of raw materials to meet verious needs. The bottom outlet enables fine materials being discharged quickly in a large amount. Enhance this model is widely used for safety screening process.
Click directly to send a message via WhatsApp
Advantage of straight screen :
1. The flat design of the straight screen equipment is convenient for manual operation, small in size and easy to move;
2. The straight screen can be connected in series to the production line system, with low energy consumption and high efficiency;
3. The inside and outside are easy to clean, there are no sanitary dead corners, and it complies with the standards for use in the food and pharmaceutical industries;
4. Automatic operation of straight screen, capable of continuous production for 24 hours;
5. Ultra-quiet bass design, normal 70 decibels;
6. The straight screen is tightly sealed to prevent liquid from leaking and dust from flying;
7. The unique square box structure and mesh frame design of the straight screen improves the durability of the screen, makes screen replacement fast and easy to disassemble and assemble. So that the screen replacement problem can be completed within 5 minutes.
Technical parameters of straight screen :
|
Model |
Power(kw) |
Screen Dia.(mm) |
Speed(r/min) |
Screen area(㎡) |
|
HT-600 |
2*0.06 |
560 |
1450 |
0.22 |
|
HT-800 |
2*0.08 |
760 |
0.4 |
|
|
HT-1000 |
2*0.25 |
950 |
0.62 |
|
|
HT-1200 |
2*0.4 |
1150 |
0.95 |
|
|
HT-1500 |
2*0.45 |
1450 |
1000 |
1.5 |
Features of the Straight screen.
☆ The power generator is advanced
The excitation force is optimally matched with each model even though the power is lower than that of similar products; the power generator uses sealed bearings from top to bottom, wide coils and is dipped in paint as a whole . Special lubricants to maintain the highest quality standards of HUATAO.
☆ The widest selection of raw materials.
Sorting range for screening raw materials: granular, powdery, fine, rough, heavy, light, slurry, and liquid can all be screened; particles as small as 20 microns can also be screened. The slurry can also be filtered to 20 microns.
☆ The mesh clogging rate is low.
The through-type vibration function limits the mesh clogging to a smaller range, and the special screen cleaning device maximizes the probability of raw materials passing through the mesh. For single-layer and multi-layer sorting, a single screening machine can be easily equipped with one or two layers of screens to sort out 2-3 grades of raw materials at the same time.
☆ The screen is easy to replace.
Not only can the screen be replaced successfully in 3 to 5 minutes, but the screen can also be tightened evenly, which greatly reduces screen wear and extends the service life of the screen.
☆ No mechanically transmitted vibration.
The specially designed HUATAO screener has no mechanically transmitted vibration and does not require foundation installation. It can be placed in any horizontal position, the required position and is easy to move.
☆ Various specifications.
There are seven series of standard specifications for the diameter of the straight-row screening filter: From 400mm-600mm-800mm—1000mm-1200mm-1500mm-1800mm-2000mm
